i have a old lennox apartment furnace with air. can somebody please tell me where the coils are?

i want to clean the coils before the repairman comes he wont do it.he just gasses it up and leaves then it freezes up
Reply to
jalene
Re: i have a old lennox apartment furnace with air. can somebody please tell me where the coils are? full size image
Re: i have a old lennox apartment furnace with air. can somebody please tell me where the coils are? full size image
The coils are inside of the furnace cabinet, you would need to take a panel (or panels) off to get to them. They are often (though not always) arranged in a triangular shape box inside the air handler, close to it's connection to the air return ducts. Since water condenses on them, you can pinpoint their location by the drain pipe which goes from a catching pan or trough located underneath the coils.

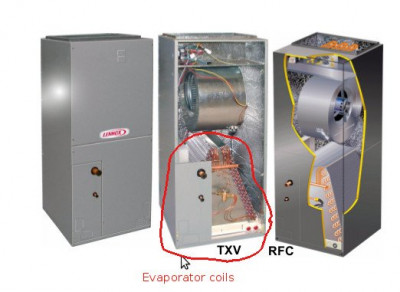

Below is a picture or a more recent Lennox air handler unit from its user manual.  Yours will look different but the major components will be the same.
