Where to put my connection box for my illuminated mirror?

Jul 25, 2015 0 Replies
Where to put my connection box for my illuminated mirror? open original image
Where to put my connection box for my illuminated mirror? open original image

Hello -I have an IP44 illuminated mirror to put on the wall. It has a flex coming out of the back. Trouble is, the cable for the lighting circuit sticks straight out of a freshly plastered brick wall, with no recess/hole for a connection box. The mirror's back is held on with screws and there's plenty of space in there for a connector block. Will it be ok for me to run the circuit cable into the back, through the existing grommet to make the circuit-to-flex connection inside the luminaire? It's on a spur so no issues about continuing the circuit for other lights. Pictures show (a)

formatting link

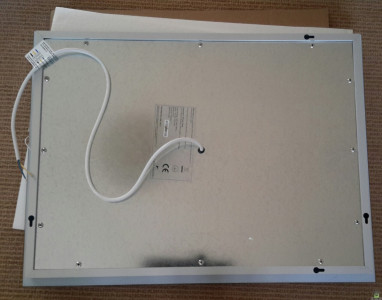

back of mirror/luminaire



(b)

formatting link
wall with circuit cable sticking out. It's just that this would be easier than chopping 25 Sq cm of plaster and brick out of the wall around the embedded cable to make a recess. It is in a toilet, by the way, not a bathroom.



Any advice greatly appreciated - thanks
