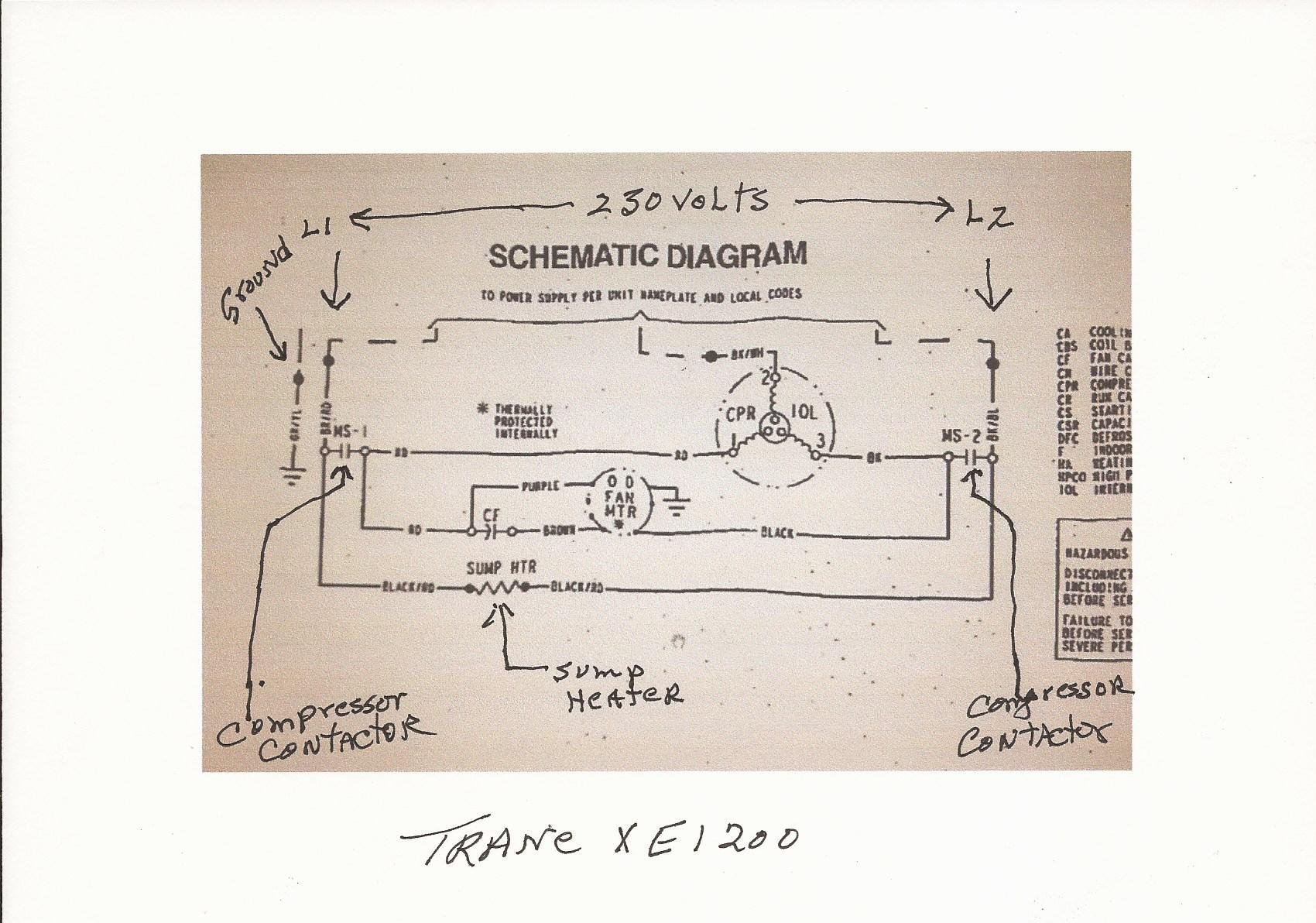

Here is a actual wiring diagram from a Trane XE1200 unit. As you can see the sump heater is wired to the two incoming hot wires from the external power source. Hope this helps.
read more and respond »Posted 3 years ago by stanhvac1 in Air Conditioning
