Remove Old Kitchen Cabinet Shelf without Destroying

Trying to remove old kitchen cabinet shelf with phillips head screw "locks" without destroying shelf and without removing entire cabinet assembly.

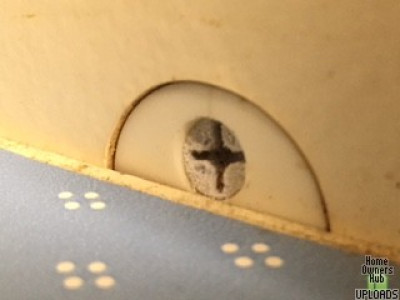

Shelf "locks" (pictured x2) are at top and bottom of cabinet enclosures.
Phillips head screw in lock unscrews 2 turns maximum and loosens shelf up in-place, but still unable to remove shelf???
click to open the full size version of the image
click to open the full size version of the image
Add pictures here
<% if( /^image/.test(type) ){ %>
<% } %>
<%-name%>
Add image file
Upload
Bob,
What holds the shelf to this "shelf lock"? Is there a screw under the shelf?
Dave M.
Add pictures here
<% if( /^image/.test(type) ){ %>
<% } %>
<%-name%>
Add image file
Upload
replying to David L. Martel , Bob wrote:

Dave, no screw under shelf. The "lock" is a Titus connector, which I learned online, which expands a pin or dowel in the shelf. I have all 4 loosened but am still at a loss for how to get shelf out without pulling out entire cabinet assembly?
Add pictures here
<% if( /^image/.test(type) ){ %>
<% } %>
<%-name%>
Add image file
Upload

Since that is the bottom of the cabinet, tapping it up or down should remove it. Problem is, the bottom and top are what are holding the cabinet together; if you remove the bottom, the rest of the cabinet may or may not stay together - and installed - depending upon how it was hung.
--

dadiOH
____________________________
  Click to see the full signature.
Add pictures here
<% if( /^image/.test(type) ){ %>
<% } %>
<%-name%>
Add image file
Upload
Bob,
Looked further at the Titus site and changed my mind. Here's what I think you do. Turn all of the floor locks anti-clockwise( yeah, less than one turn). That should release the pins in the floor. Gentle tapping and the floor should drop out of the cabinet.
Dave M.
Add pictures here
<% if( /^image/.test(type) ){ %>
<% } %>
<%-name%>
Add image file
Upload
Bob,
Titus was a big help. There's a good video here:
https://www.youtube.com/watch?v=kLlgHPgg1_8
You aren't trying to remove a shelf, you are trying to remove the floor of the cabinet, yes? After you loosen the locking screws, tap the walls of the cabinet gently with a hammer to widen the bottom so that the locking pins clear the holes on the floor. I'm afraid this may be a major disassembly project. Are there connectors along the back, also? Seems to be an over-complicated gizmo to do a simple job. Good luck
Dave M.
Add pictures here
<% if( /^image/.test(type) ){ %>
<% } %>
<%-name%>
Add image file
Upload
Looks like an "Ikea style" type of fastener. What you see just locks in a pin on the mating surface. Whole cabinet probably comes apart with that style of connector. Good luck.
